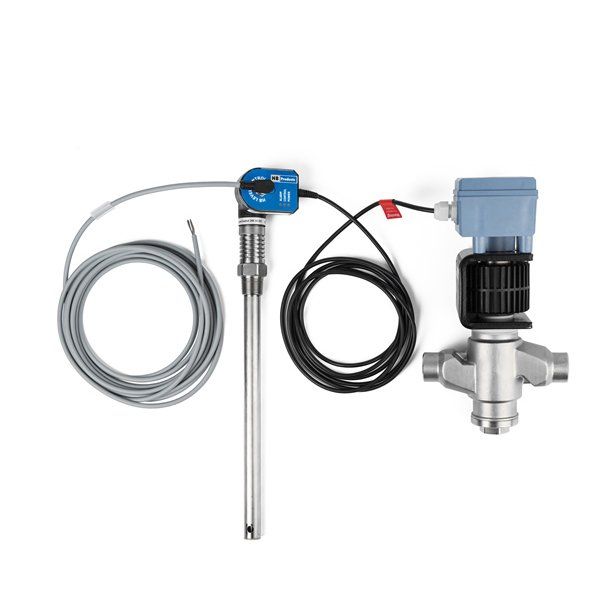

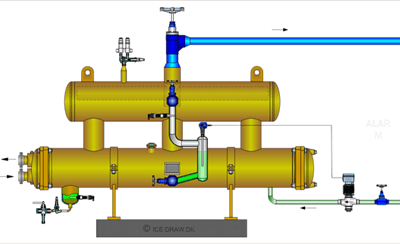

HBLC is an intelligent sensor with a built-in microprocessor. It is designed to control refrigerant levels in both low pressure and high pressure systems. It emits a 4-20 mA signal, which is proportional to the sensor's set range of measurement.

Apart from the 4-20 mA signal, the sensor also has a built-in controller.

The controller can be set-up with all the parameters necessary for controlling a modulating motor valve or stepper motor.

The sensor can be delivered with a cable for direct supply to and control of motor valve or stepper motor valve.
  • Product features

    • Stand alone solution together with modulating valve. Flexible and cost effective alternative to float switches
    • Simple installation and configurering with PC. The regulation loop, timer and alarm are all programmable
    • LED indication of power supply, alarm and regualtion status. Further an alarm status can be given to central panel.
    • Split design which make it possible to make easy installation and diagnostic. The electronic part can be easily disconnected by 2 screws.
    • The sensor can control modulating valve, pilot valve or stepper motor valve.
  • Specifications

    Power supply

    • Voltage 24 V AC/DC + 10%
    • Current consumption Max 30 mA

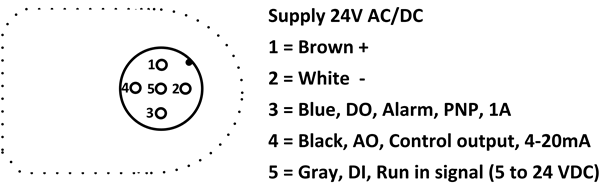

    • Electronic connection M12, 5 pins
    • Cable length 3 m (118")
    • Cable size 3 x 0,75 mm2

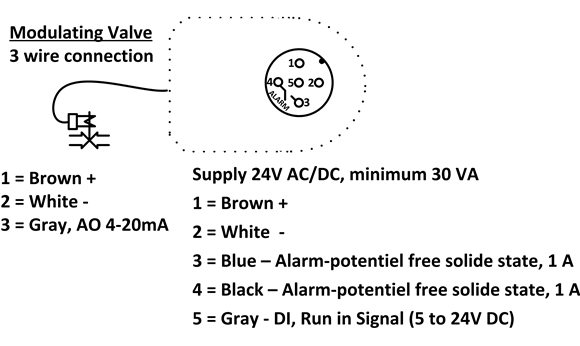

    Direct valve control

    • Signal to modulation valve 4-20 mA

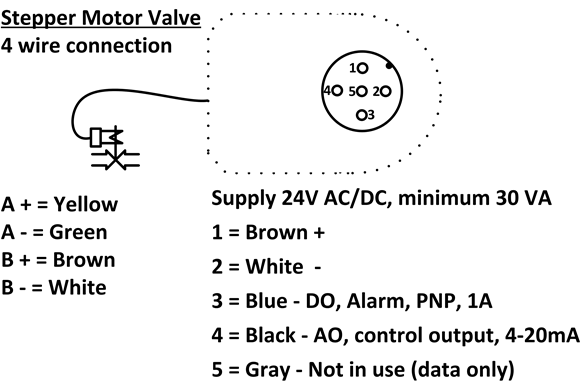

    Stepper motor control

    • Stepper motor steps 25-5000 steps
    • Stepper motor spedd in m/s 2-40 m/s
    • Home recal. Time in hours   0-255 hours
    • Stepper motor phase cureent 0-750 mA
    • Stepper motor holding current 0-250 mA

    Environmental conditions

    • Ambient temperature -30...+50°C
    • Refrigerant temperature -60...+80°C
    • Max operating pressure 100 bar
    • Degree of protection IP65
    • Vibrations IEC 68-2-6 (4g)

    Mechanical specifications

    • Mechanical connection 3/4"
    • Material liquid parts AISI 304 / PTFE
    • Material (electronics) GF BLK, Nylon 6 (PA)

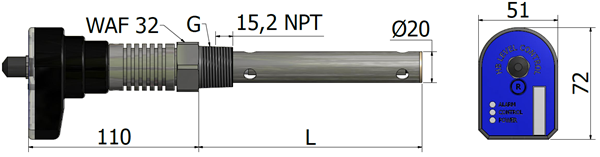

    • Size Length x 51x72 mm
    • Weight Depends on length
    • Type Front housing

    Configurations

    • Configuration By PC tool
    • LED indiation LED (green, yellow and red)

    Approvals

    • EMC test EN 61000-2

    Accessories

    • Modulating valve MVS 661

    Cable

    • Length 5 m
    • Material / Size PUR - 5 x 0,34 mm2

  • Ordering code

    Refrigerant Length / thread Motor type Cable to valve Ordering code

    CO2/HFC 160 mm / 3/4" NPT Modulating No HBLC-CO2/HFC-1.6-2

    CO2/HFC 160 mm / 3/4" BSPP Modulating No HBLC-CO2/HFC-1.6-6

    CO2/HFC 160 mm / 3/4" NPT Modulating Yes HBLC/C-CO2/HFC-1.6-2

    CO2/HFC 160 mm / 3/4" BSPP Modulating Yes HBLC/C-CO2/HFC-1.6-6

    CO2/HFC 160 mm / 3/4" NPT Stepper Yes HBLC/S-CO2/HFC-1.6-2

    CO2/HFC 160 mm / 3/4" NPT Stepper Yes HBLC/S-CO2/HFC-1.6-6

    CO2/HFC 314 mm / 3/4" NPT Modulating No HBLC-CO2/HFC-3.1-2

    CO2/HFC 314 mm / 3/4" BSPP Modulating No HBLC-CO2/HFC-3.1-6

    CO2/HFC 314 mm / 3/4" NPT Modulating Yes HBLC/C-CO2/HFC-3.1-2

    CO2/HFC 314 mm / 3/4" BSPP Modulating Yes HBLC/C-CO2/HFC-3.1-6

    CO2/HFC 314 mm / 3/4" NPT Stepper Yes HBLC/S-CO2/HFC-3.1-2

    CO2/HFC 314 mm / 3/4" BSPP Stepper Yes HBLC/S-CO2/HFC-3.1-6
